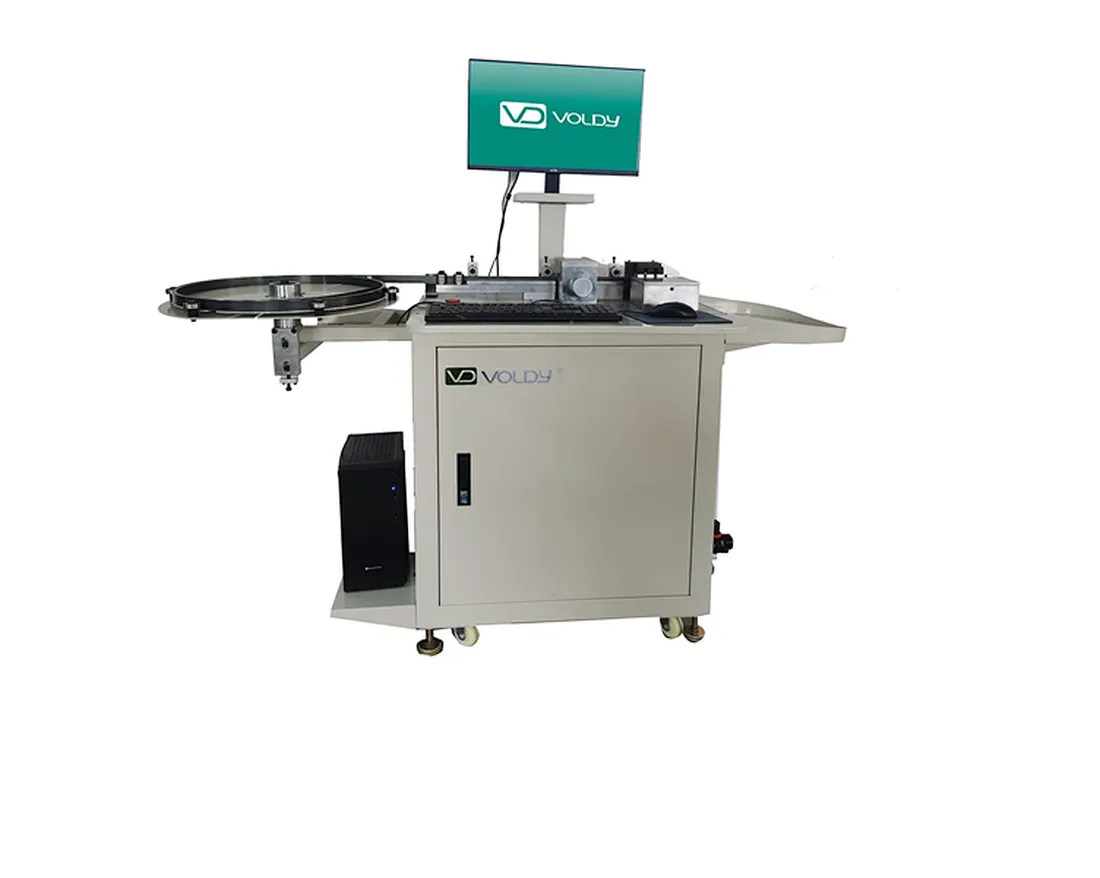

CPS225
1.Choose all creasing lines while pressing only one button.
2. It can break off automatically, and it can also i-shrink
3.It can caculate the length of arc automatically.
4. Tools are easy to assemble and disassemble
5.Servo feeding system and electrical punching, this ensures precision and stability.
We never choose cylinder as motive power for cost saving.
Power consumption is 50% less than cylinder-power creasing cutter.
It can caculate the length of arc automatically.
2. It can break off automatically, and it can also i-shrink
3.It can caculate the length of arc automatically.
4. Tools are easy to assemble and disassemble
5.Servo feeding system and electrical punching, this ensures precision and stability.
We never choose cylinder as motive power for cost saving.
Power consumption is 50% less than cylinder-power creasing cutter.
It can caculate the length of arc automatically.
CPS225
FOB
1 set
20set / Month
Shenzhen
10Day
Quantity:
US $3500.00 - US $4000.00
/ set
1.Choose all creasing lines while pressing only one button.
2. It can break off automatically, and it can also i-shrink
3.It can caculate the length of arc automatically.
4. Tools are easy to assemble and disassemble
5.Servo feeding system and electrical punching, this ensures precision and stability.
We never choose cylinder as motive power for cost saving.
Power consumption is 50% less than cylinder-power creasing cutter.
It can caculate the length of arc automatically.
| 技术参数 Parametres | 刀片厚度 Steel Rules Thickness（mm） |
| 0.71, 1.07,1.42 | |
| 刀片高度(mm) Steel Rules Height | ≤30 |
| 送料精度 Feed-in Accuracy | ±0.1/300mm |
| 最大运行速度 Speed | 30m/min |
| 平切方式 Straight Cutting | 自动平切 Automatic Straight-cut |
| 桥位方式 Bridges | 自动桥位，桥位高度自动可调（15或18mm） Automatic Bridge Punching，height of bridge can be adjusted automatically |
| 最佳图形格式 File Format | dwg,dxf格式 |
| 设备重量 Weight | 200kg |
| 功率 Power | 1.5kw |
| 电源要求 Power Requirements | 单相110V/220V Single-Phase 50/60Hz |
| 标配模具 Outfit Dies | 1. 平切模具2套 Two sets of Straight Cutting Mould 2. 桥位模具2套 Two sets of Bridge Punching Mould |
