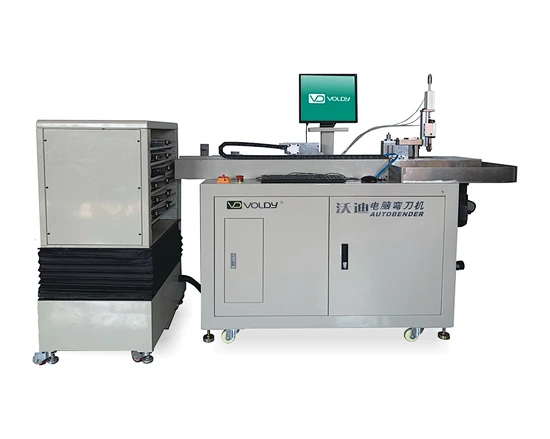

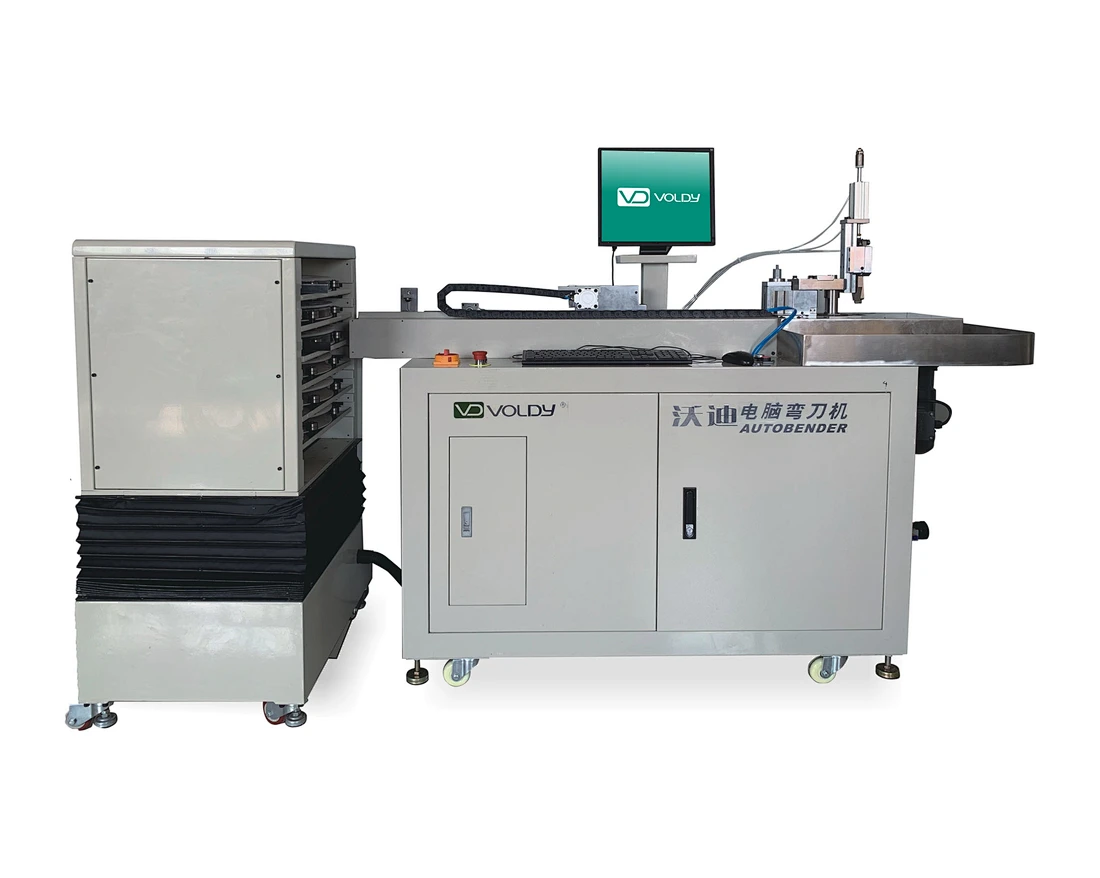

PBC460A
1. Supporting format of dxf., dwg., ai., cdr. and etc.
2. Possessing the most advanced ability of softwareb development. Our unique expert bending system can adapt to different dies details in different fields. It saves die-fixing time and improves dies quality.
3. Height of the bridge can be changed from 14 to 20 mm
4. Motor Power is used in bridge, lipping and straight-cutting functions, which avoids leaking of oil pressure system.
5. Easy to handle thick or wide rules.
6.Special size of rules are compatible.
2. Possessing the most advanced ability of softwareb development. Our unique expert bending system can adapt to different dies details in different fields. It saves die-fixing time and improves dies quality.
3. Height of the bridge can be changed from 14 to 20 mm
4. Motor Power is used in bridge, lipping and straight-cutting functions, which avoids leaking of oil pressure system.
5. Easy to handle thick or wide rules.
6.Special size of rules are compatible.
PBC460A
FOB
1 set
20set / Month
Shenzhen
10Day
Quantity:
1. Supporting format of dxf., dwg., ai., cdr. and etc.
2. Possessing the most advanced ability of softwareb development. Our unique expert bending system can adapt to different dies details in different fields. It saves die-fixing time and improves dies quality.
3. Height of the bridge can be changed from 14 to 20 mm
4. Motor Power is used in bridge, lipping and straight-cutting functions, which avoids leaking of oil pressure system.
5. Easy to handle thick or wide rules.
6.Special size of rules are compatible.
| Model : PBC460A | Steel Rules Thickness(mm) | ||
| 0.71 | 1.07 | 1.42 | |
| Steel Rules Height(mm) | ≤60 | ≤60 | ≤30 |
| Max. Angle | 110° | 90° | 90° |
| Min. Arc 90º Radium(mm) | 0.5 | 0.8 | 1.5 |
| Min. Foreside Bending Length(mm) | 1.5 | 2 | 2.2 |
| Min. Rearward Cutting Length(mm) | 0.5 | 0.5 | 0.8 |
| Feed-in Accuracy | Non-interruptive feeding system,±0.03/300mm | ||
| Bridges | Automatic Bridge Punching, height of bridge varies from 14-20mm | ||
| Straight Cutting | Swaying off & Automatic Straight cut | ||
| Nicking | optional(0.2~1.0mm) | ||
| File Format | dxf，wd | ||
| Weight | 430kg | ||
| Size | 2500*1200*990 mm | ||
| Power Requirements | Single phase 110V/220V 50/60Hz | ||
| Main Parts | High-speed controlling system, Panasonic Servos, Taiwan reductioners,dual grinded screw,Airtag cylinders, stable elements | ||
