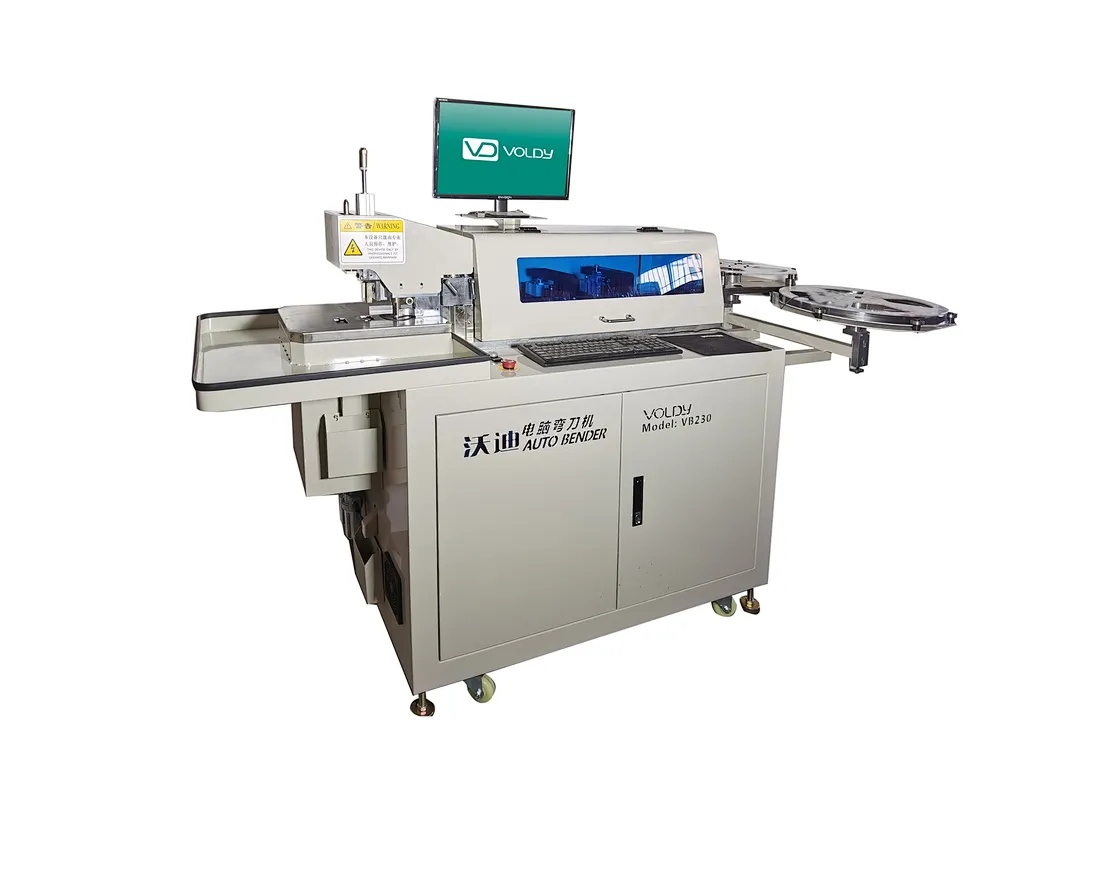

VB230L
1. Non-inerruptive feeding system is applied to this model, which is faster than single-screw feeding system and more precise than wheel-feeding system.
2.Bridge punching or hole punching can be selected in software.
3.Nicking is available.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. Auto Bending; Auto Lipping; Multi Bridge; Nicking; Auto Straight-cut.
2.Bridge punching or hole punching can be selected in software.
3.Nicking is available.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. Auto Bending; Auto Lipping; Multi Bridge; Nicking; Auto Straight-cut.
VB230L
FOB
1 set
20set / Month
Shenzhen
10Day
Quantity:
1. Non-inerruptive feeding system is applied to this model, which is faster than single-screw feeding system and more precise than wheel-feeding system.
2.Bridge punching or hole punching can be selected in software.
3.Nicking is available.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. Auto Bending; Auto Lipping; Multi Bridge; Nicking; Auto Straight-cut.
| Model：VB230L | Steel Rules Thickness(mm) | |||
| 0.45 | 0.53 | 0.71 | 1.07 | |
| Steel Rules Height (mm) | 8-25 | 8-25 | 23.8-30 | 23.8 |
| Max. Angle | 110° | 110° | 95° | 90° |
| Min. Arc 90º Radium (mm) | 0.4 | 0.4 | 0.5 | 0.8 |
| Min. Foreside Bending Length (mm) | 1 | 1 | 1.5 | 2 |
| Min. Rearward Cutting Length (mm) | 0.5 | 0.5 | 0.5 | 0.5 |
| Feed-in Accuracy | Non-interruptive feeding system,±0.03/300mm | |||
| Bridges | Two bridges can be set in software | |||
| Cutting | Straight cut or lip can be set in software | |||
| Main Parts | High-speed controlling system, Panasonic Servos, Taiwan reductioners,dual grinded screw,Airtag cylinders, stable elements | |||
| Nicking | optional(0.2~1.0mm) | |||
| File Format | dwg，dxf，wd | |||
| Weight | 430kg | Size | 2500*850*1500 mm | |
| Power Requirements | Single phase 110V/220V 50/60Hz | Air Pressure | 5-7kgf/cm2 | |
