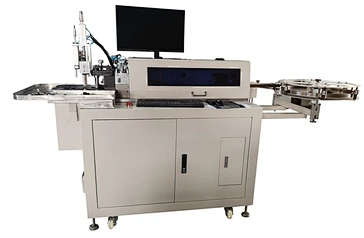

VB260N
1. Non-inerruptive feeding system is applied to this model, which is faster than single-screw feeding system and more precise than wheel-feeding system.

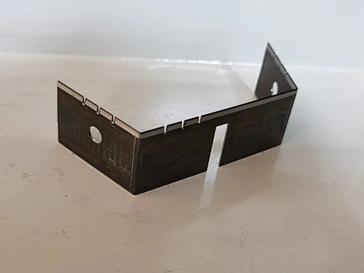

2.Nicking is available.
3. Bridge punching or hole punching can be selected in software. Height of the bridge can be changed from 14 to 20 mm.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. This model is extremly strong for 3~4pt, 60mm rules.
2.Nicking is available.
3. Bridge punching or hole punching can be selected in software. Height of the bridge can be changed from 14 to 20 mm.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. This model is extremly strong for 3~4pt, 60mm rules.

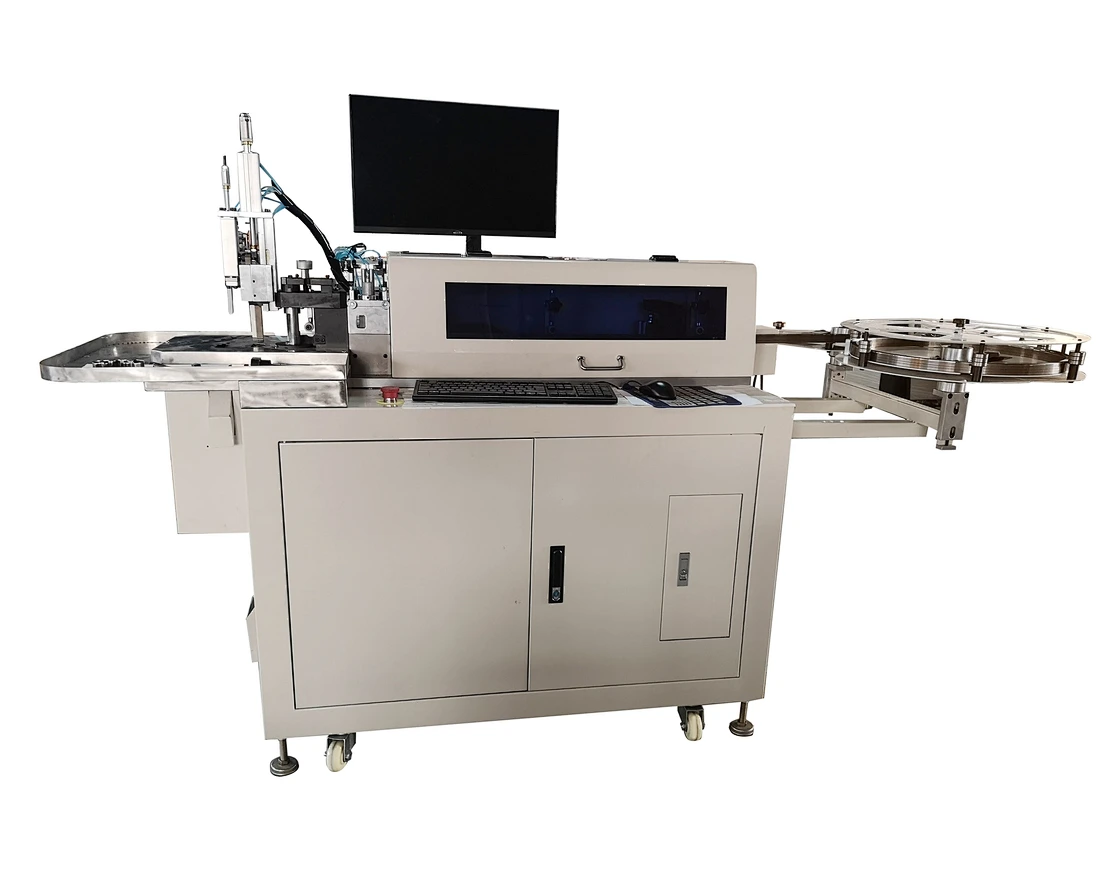

VB260N
FOB
1 set
20set / Month
Shenzhen
10Day
Quantity:

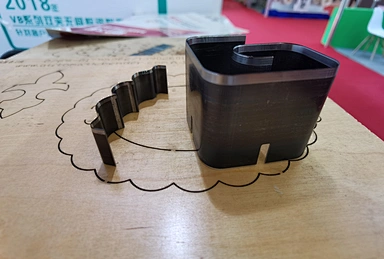

Economic Automatic Steel Rule Bender with excellent quality. VB260 is Steel Rule Bender for die making .
1. Non-inerruptive feeding system is applied to this model, which is faster than single-screw feeding system and more precise than wheel-feeding system.
2.Nicking is available.
3. Bridge punching or hole punching can be selected in software. Height of the bridge can be changed from 14 to 20 mm.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. This model of Economic Automatic Steel Rule Bender is extremly strong for 3~4pt, 60mm rules.
| Model : VB260N | Steel Rules Thickness(mm) | ||
| 0.71 | 1.07 | 1.42 | |
| Steel Rules Height(mm) | ≤60 | ≤60 | ≤30 |
| Max. Angle | 95° | 90° | 85° |
| Min. Arc 90º Radium(mm) | 0.5 | 0.8 | 1 |
| Min. Foreside Bending Length(mm) | 1.5 | 2 | 2.5 |
| Min. Rearward Cutting Length(mm) | 0.5 | 0.5 | 0.5 |
| Feed-in Accuracy | Non-interruptive feeding system,±0.03/300mm | ||
| Bridges | Two bridges can be set in software | ||
| Cutting | Straight cut or lip can be set in software | ||
| Nicking | optional(0.2~1.0mm) | ||
| File Format | dwg，dxf，wd | ||
| Weight | 430kg | ||
| Power Requirements | Single phase 110V/220V 50/60Hz | ||
| Main Parts | High-speed controlling system, Panasonic Servos, Taiwan reductioners,dual grinded screw,Airtag cylinders, stable elements | ||
