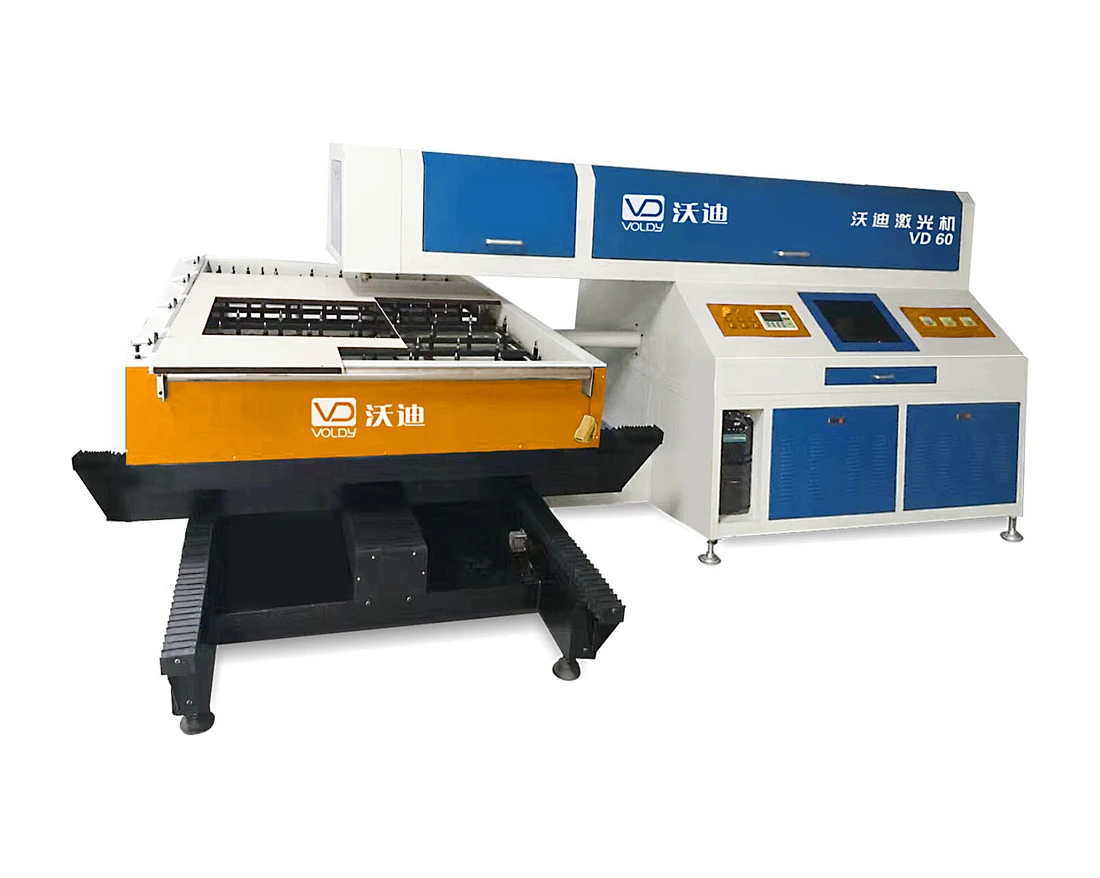

VD60
VD60
FOB
1 set
10set / Month
Shenzhen
30Day
Quantity:
Feature:
1. CO2 laser cutting machine for die-board uses fixed laser path, ensure stable optical path.
2. 600W laser cutting machine for dies uses high effective and optimized exhaust system to reduce smoke during working, and keep a healthy environment.
3. Laser head can be automatically adapt to jagged material, which ensure uniform cutting seam.
4. High quality laser cutting machine for dies.
1. CO2 laser cutting machine for die-board uses fixed laser path, ensure stable optical path.
2. 600W laser cutting machine for dies uses high effective and optimized exhaust system to reduce smoke during working, and keep a healthy environment.
3. Laser head can be automatically adapt to jagged material, which ensure uniform cutting seam.
4. High quality laser cutting machine for dies.
| Models | VD40 | VD60 |
| Laser power | 400W | 600W |
| Cutting speed | Iron: 2mm Nonmetal: 20mm | Iron: 3mm Nonmetal: 20mm |
| Laser type | Single cutting head, Connected CO2 laser tubes | |
| Working area | 1200*1800 mm | |
| Size | 3500*4000 mm | |
| Net weight | 1200 KG | |
| Laser structure | Fixed Light Path, Welding Lathe Bed | |
| Cutting Precision | ±0.05mm | |
| Location precision | ±0.05mm | |
| Power requirements | Single Phase 220V 50-60HZ，30A | |
| Graphic file format Supported | PLT，AI，DXF etc. | |
| Gas | N2/Dry clean air or N2 | |
