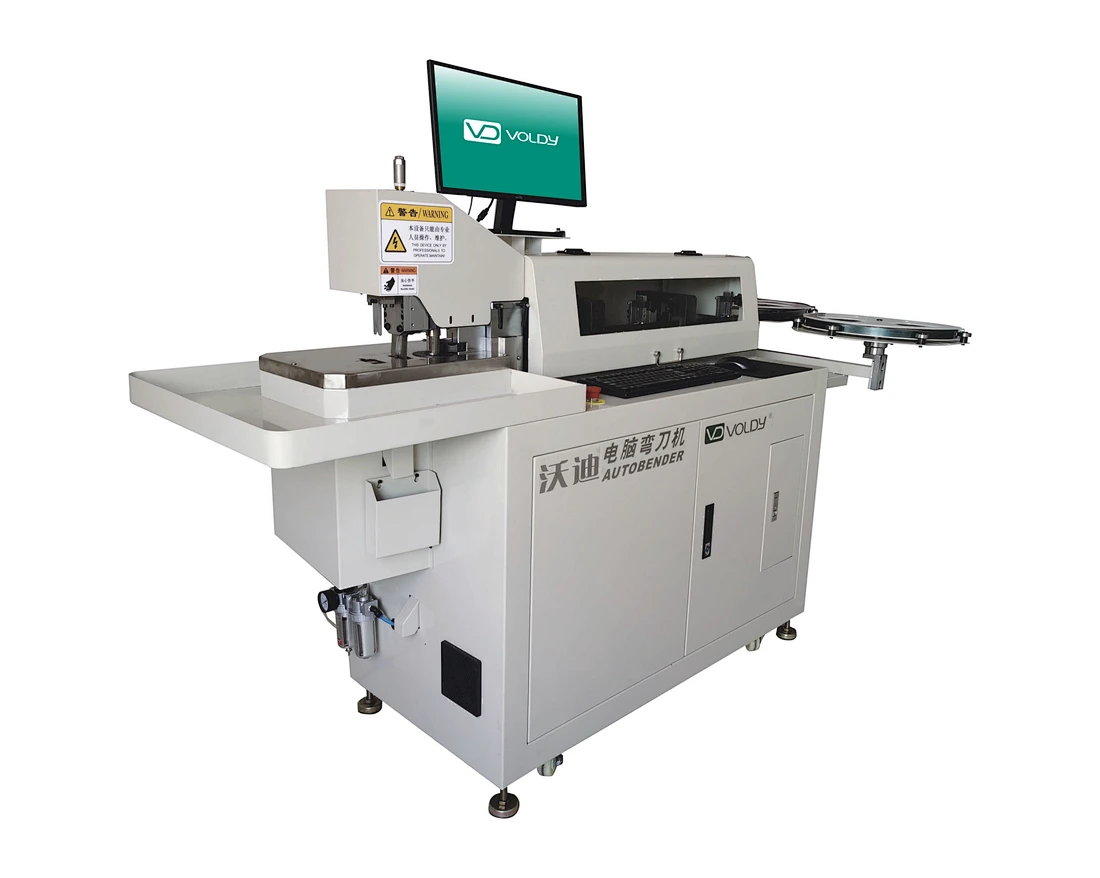

VB230 Auto bending machine
1. Non-inerruptive feeding system is applied to this model, which is faster than single-screw feeding system and more precise than wheel-feeding system.
2.Bridge punching or hole punching can be selected in software.
3.Nicking is available.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. Auto Bending; Auto Lipping; Multi Bridge; Nicking; Auto Straight-cut.
2.Bridge punching or hole punching can be selected in software.
3.Nicking is available.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. Auto Bending; Auto Lipping; Multi Bridge; Nicking; Auto Straight-cut.
VB230
FOB
1 set
20set / Month
Shenzhen
10Day
Quantity:
1. Auto bending rule has non-inerruptive feeding system is applied to this model, which is faster than single-screw feeding system and more precise than wheel-feeding system.
2.Bridge punching or hole punching of VB230 Automatic plywood Bending Machine can be selected in software.
3.Nicking is available in High efficiency auto blade bending machine.
4. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
5. Auto Bending; Auto Lipping; Multi Bridge; Nicking; Auto Straight-cut. Auto Bender plywood cutting machine.
| Model：VB230 | Steel Rules Thickness(mm) | |||
| 0.45 | 0.53 | 0.71 | 1.07 | |
| Steel Rules Height (mm) | 8-25 | 8-25 | 23.8-30 | 23.8 |
| Max. Angle | 110° | 110° | 95° | 90° |
| Min. Arc 90º Radium (mm) | 0.4 | 0.4 | 0.5 | 0.8 |
| Min. Foreside Bending Length (mm) | 1 | 1 | 1.5 | 2 |
| Min. Rearward Cutting Length (mm) | 0.5 | 0.5 | 0.5 | 0.5 |
| Feed-in Accuracy | Non-interruptive feeding system,±0.03/300mm | |||
| Bridges | Two bridges can be set in software | |||
| Cutting | Straight cut or lip can be set in software | |||
| Main Parts | High-speed controlling system, Panasonic Servos, Taiwan reductioners,dual grinded screw,Airtag cylinders, stable elements | |||
| Nicking | optional(0.2~1.0mm) | |||
| File Format | dwg，dxf，wd | |||
| Weight | 430kg | Size | 2500*850*1500 mm | |
| Power Requirements | Single phase 110V/220V 50/60Hz | Air Pressure | 5-7kgf/cm2 | |
