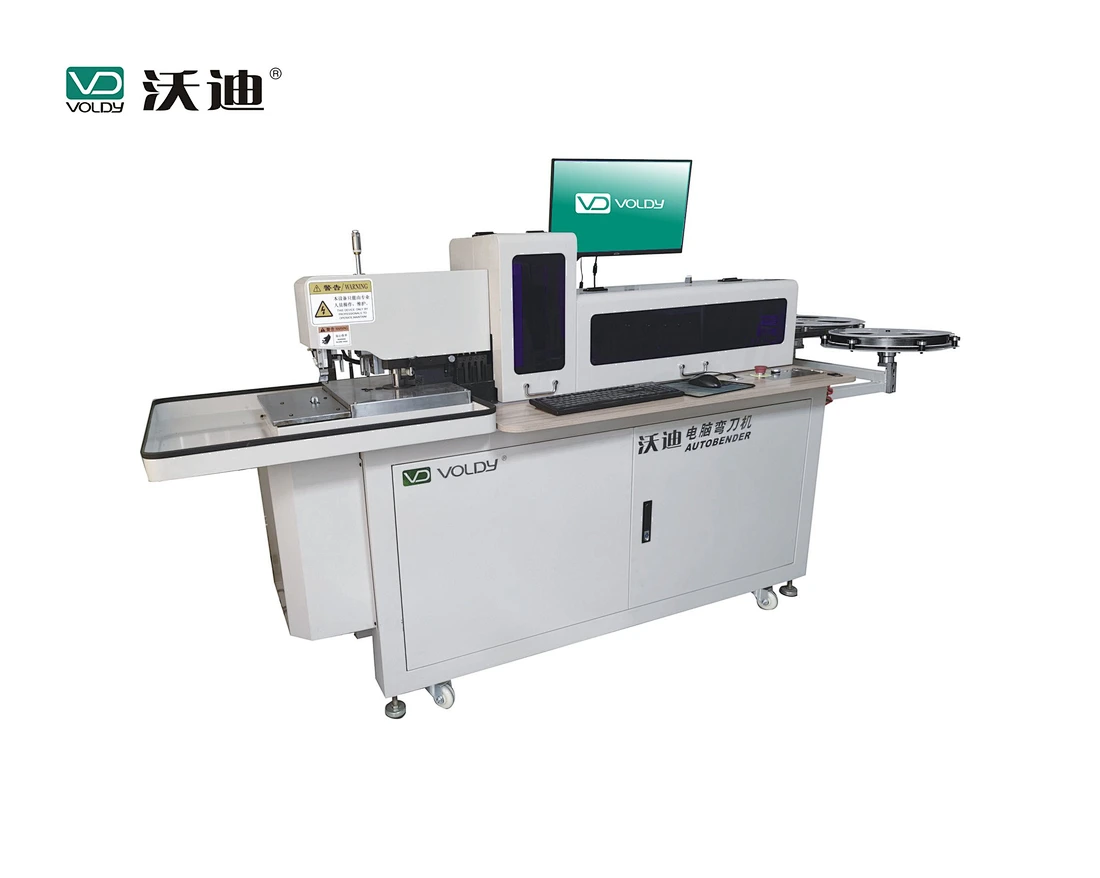

VB630 Automatic Bending Machine
1. All dies-making technological requirements can be satisfied by Voldy Autobender's double-cutting system, multi-bridge system and multi-broaching system, which ensure high-efficiency and high-shaping level as well.
2.1~3 sets of grinding tools can be installed in machine, so that different grinding requirements are satisfied.
3. Cutting in one time is efficient, cutting blade and rule separately brings perfect kerf. Two kinds of cutting can be selected in software.
4. Non-inerruptive feeding system is 30% faster than single screw benders.
5. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
2.1~3 sets of grinding tools can be installed in machine, so that different grinding requirements are satisfied.
3. Cutting in one time is efficient, cutting blade and rule separately brings perfect kerf. Two kinds of cutting can be selected in software.
4. Non-inerruptive feeding system is 30% faster than single screw benders.
5. Grinded screw is applied to this model, which ensures precise, stable and low-noice running.
VB630
FOB
1 set
20set / Month
Shenzhen
10Day
Quantity:
1. All dies-making technological requirements of VB630S Automatic Bending Machine can be satisfied by Voldy Autobender's double-cutting system, multi-bridge system and multi-broaching system, which ensure high-efficiency and high-shaping level as well.
2.1~3 sets of grinding tools can be installed in the VB630S Automatic Bending Machine, so that different grinding requirements are satisfied.
3. Steel rule Bending machine for die cutting, Cutting in one time is efficient, cutting blade and rule separately brings perfect kerf. Two kinds of cutting can be selected in software.
4. Non-inerruptive feeding system of VB630S Automatic Bending Machine is 30% faster than single screw benders.

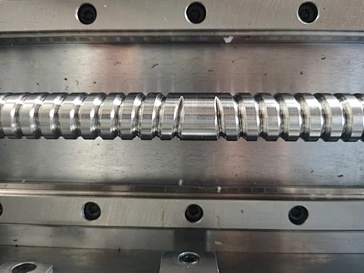

5. Grinded screw of VB630S Automatic Bending Machine is applied to this model, which ensures precise, stable and low-noice running.

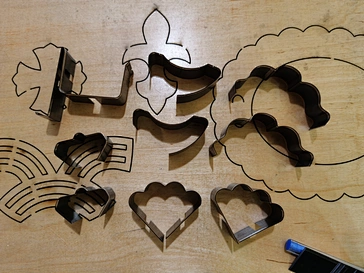

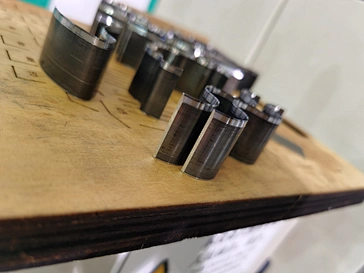

6. Low price auto bending machine is for steel rule die cutting.
| Model：VB630S | Steel Rules Thickness(mm) | |||
| 0.45 | 0.53 | 0.71 | 1.07 | |
| Steel Rules Height (mm) | 8-25 | 8-25 | 8-32 | 32 |
| Max. Angle | 110° | 110° | 100° | 90° |
| Min. Arc 90º Radium (mm) | 0.5 | 1.5 | 1.8 | 2.5 |
| Min. Foreside Bending Length (mm) | 1.5 | 1.5 | 1.8 | 2.5 |
| Min. Rearward Cutting Length (mm) | 1.0 | 1.0 | 1.5 | 2.0 |
| Feed-in Accuracy | Non-interruptive feeding system,±0.03/300mm | |||
| Bridges | Two bridges can be set in software | |||
| Cutting | Straight cut, seamless joint or lip can be set in software | |||
| Broaching | 3 sets of broaching moulds, all effects of broaching (such as depth,height,width and angle) can be set in software | |||
| Nicking | Nicking is driven by motor,its effects can be set in software | |||
| File Format | dwg，dxf，wd | |||
| Weight | 600kg | Size | 2500*850*1500 mm | |
| Power Requirements | Single-Phase 50-60Hz | Air Pressure | 5-7kgf/cm2 | |
